Rubber Top Roller Chains
Rubber Top Roller Chains
Brand: Tsubaki – Japan
Series: Rubber Top Roller Chain, series ANSI, BS
Rubber top roller chains are found throughout the industry in wood processing, glass, synthetic panels, and more
Request a quote
For fastest support. Please Call (+84) 909 840 002
- Nationwide Delivery
- Technical Waranty

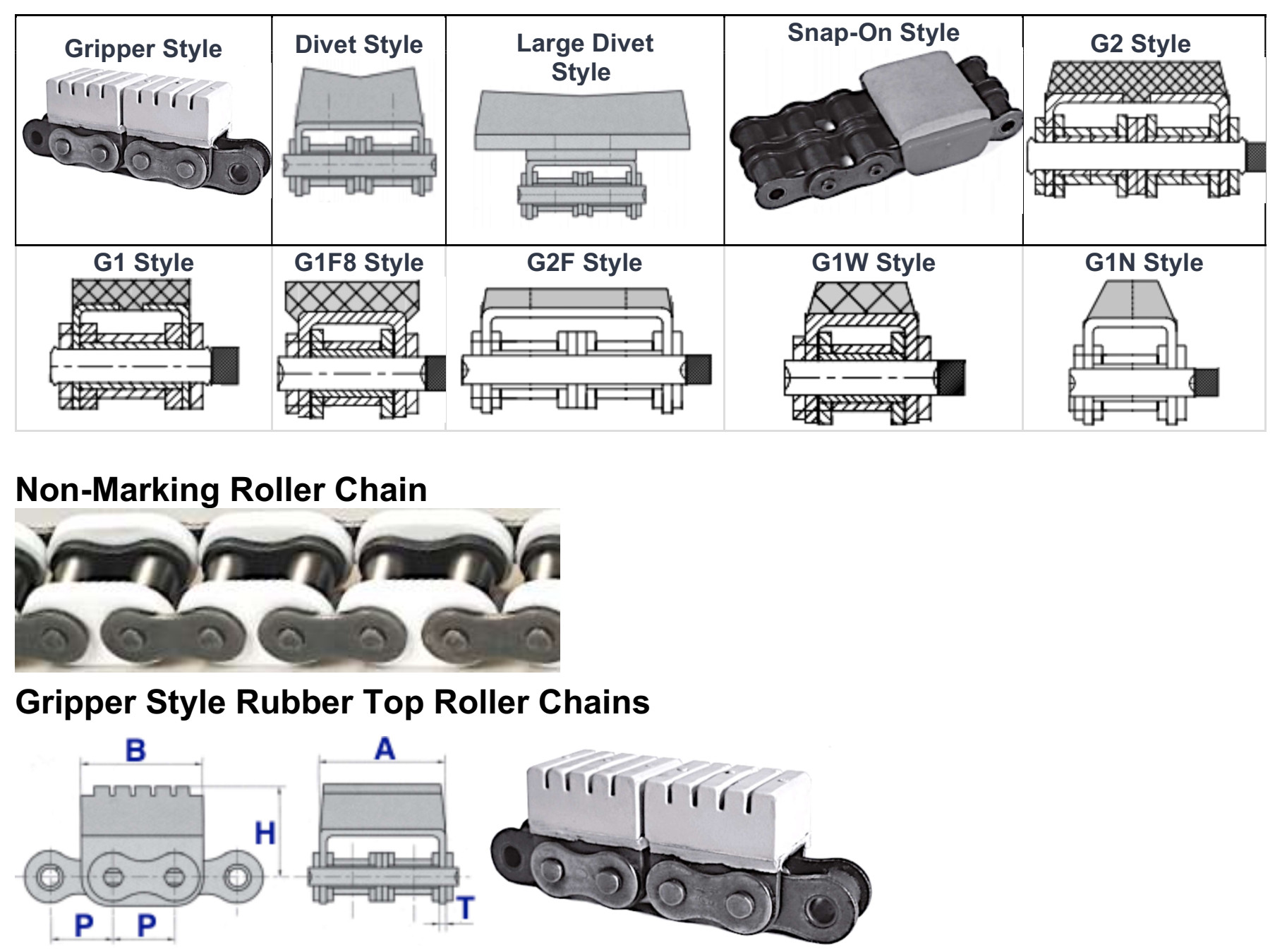

Rubber Top Chain Styles: Different profiles on rubber top roller chains are utilized in different types of applications. The below chart shows all of the “standard” rubber top roller chain styles but custom OEM options are also available upon request
Feature of product
-
Outstanding features:
Using vulcanized rubber, hardness 75 +/-5, maximum temperature 80°C (for Nitrile series can be up to +120°C)
-
Surface types
| Types baz | Gripper Style: Ansi: từ RS40-RS80, ISO: Từ 08B-16B | |||
| Snap On Style: 1,2 dãy từ 08B-20B | ||||
| G1 Style: 16B | ||||
| G2 Style: 10B-2, 12B-2 | ||||
| G1F8 Style: 08B | ||||
| G2F Style: 08B | ||||
| G1W Style: 08B, 12B, RS80, RF20B | ||||
| G1N Style: 10B, 16B, 24B | ||||
| Non-Making Roller Chain Size: 16B-M-JLP-EP, 16B-M-JLP-E2LR | ||||
| Chain base material | steel, nickel plated steel, stainless steel (stainless steel) | |||
| Rubber jig material | vulcanized rubber, various surface types, Non-Making: plastic attachment | |||
| Temperature | Natural, Neoprene: up to +80°C Nitrile up to +120°C | |||
Product Application
Loading glass panels, loading wooden panels, loading cartons, loading ceramic products, loading food bags..
